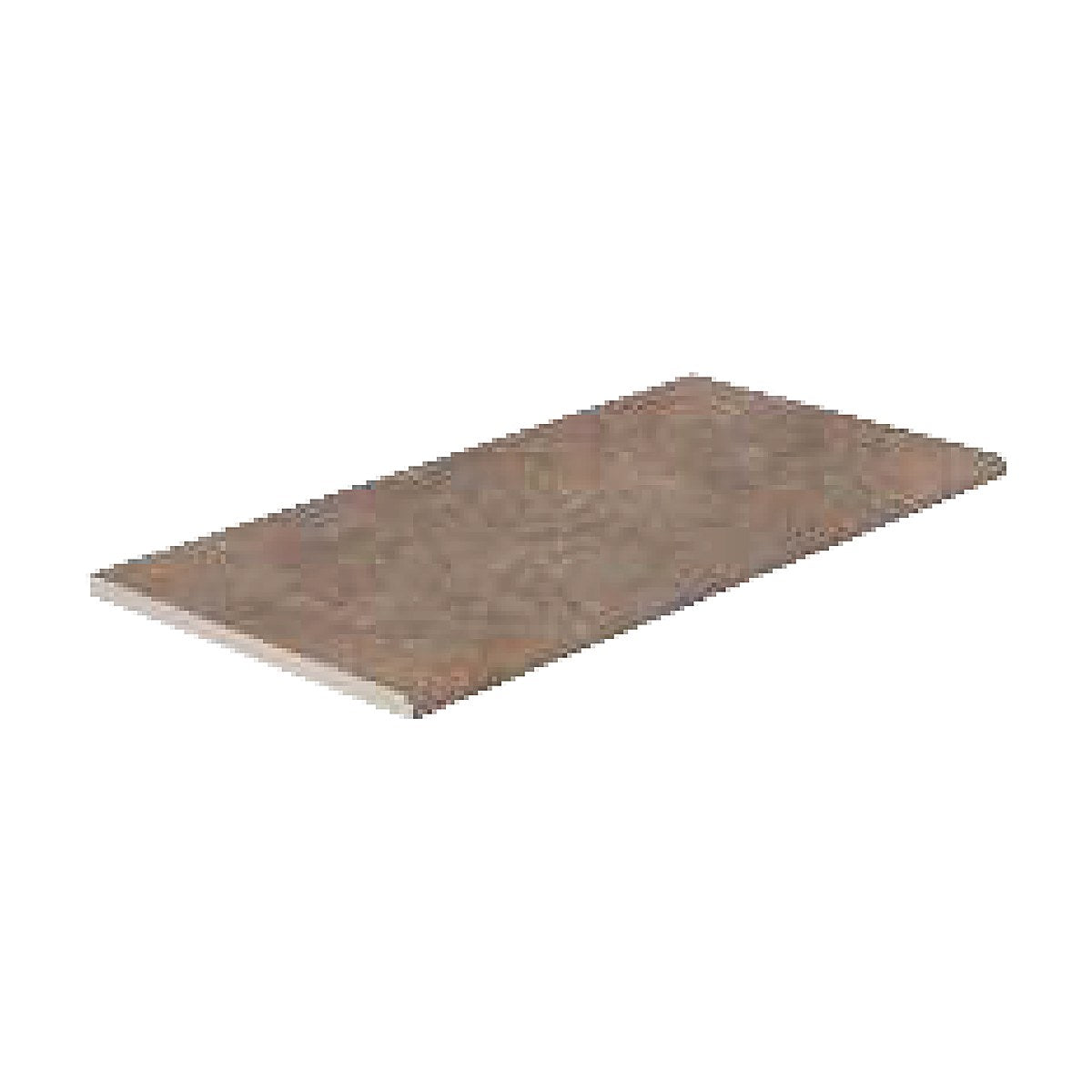

SeraPool Natural Natural Mocha Porcelain Slot Overflow Edge Tile
Sold by the Piece
Custom order: produced for your project and shipped direct from the factory. Lead time is confirmed with your quote.
SeraPool Natural Natural Mocha Porcelain Slot Overflow Edge Tile is the companion piece to the slot overflow coping: it forms the inner edge of the overflow slot so the water line, slot and deck read as one continuous surface. It is part of the SeraPool Natural™ Outdoor & Pool Collection, where the pool interior, coping, grates and deck are specified as one porcelain system.
Natural Mocha is a mocha-brown, natural-stone-look porcelain surface. Pool coping, grates and deck tile are produced separately, so slight tonal differences between them are normal for this natural-stone look; blend pieces from several crates during installation.
Technical specifications
| Material | Porcelain |
|---|---|
| Size | 13x26 in. nominal; actual 32.7 x 65.7 cm (12-7/8 x 25-7/8 in.) |
| Thickness | 11/16 in. (17 mm) |
| Slope | 5% |
| Recommended joint | 1/8 in. (3 mm) |
| Water absorption | Eb ≤ 0.5% (EN ISO 10545-3) |
| Slip resistance | PTV ≥ 45, wet pendulum (EN 16165 Annex C) |
| Frost and thermal shock | Resistant (EN ISO 10545-12, EN ISO 10545-9) |
| Chemical resistance | Class A, including swimming pool salts (EN ISO 10545-13) |
| Pairs with | Natural Mocha slot overflow coping |
| Sold by | Piece; made to order |
Installation notes
- Set on a sound, level bond beam with a C2TE S1 deformable cementitious adhesive (EN 12004) or an ANSI A118.15 improved modified mortar, fully back-buttered with no voids.
- Set the edge tile and coping to the same level so water spills evenly along the full length of the slot.
- Leave a flexible, sealant-filled movement joint between coping and deck tile and over structural joints (TCNA EJ171).
Matching Natural Mocha pool-deck system
Every piece below is made in the same Natural Mocha color, so coping, gutter grates, drains and deck tile finish as one surface:
- Natural Mocha deck tile
- Natural Mocha deck trims & edges
- Natural Mocha slot overflow coping
- Natural Mocha one-piece pool coping
- Natural Mocha bullnose pool coping
- Natural Mocha flat pool coping
- Natural Mocha flexible gutter grates
- Natural Mocha drain grates
- Natural Mocha concealed drain grates
- Natural Mocha deck drain channel
Ordering and lead time
SeraPool Natural is made to order for each project and shipped direct from the factory to the job site, with crates marked for your project. Send drawings or pool and deck dimensions and we will list every coping, grate and drain piece on one quote; quantities, freight and lead time are confirmed per project.
