SeraPool Natural Cement Grey Porcelain Deck Drain Channel System
Sold by the Piece
Custom order: produced for your project and shipped direct from the factory. Lead time is confirmed with your quote.
SeraPool Natural Cement Grey Porcelain Deck Drain Channel System is a shallow porcelain channel that collects rainwater and deck runoff at the edge of the terrace and carries it away from the pool, so dirty water never mixes with pool water. It is part of the SeraPool Natural™ Outdoor & Pool Collection, where the pool interior, coping, grates and deck are specified as one porcelain system.
Cement Grey is a medium cement-gray porcelain surface with a fine, concrete-like texture. Pool coping, grates and deck tile are produced separately, so slight tonal differences between them are normal for this natural look; blend pieces from several crates during installation.

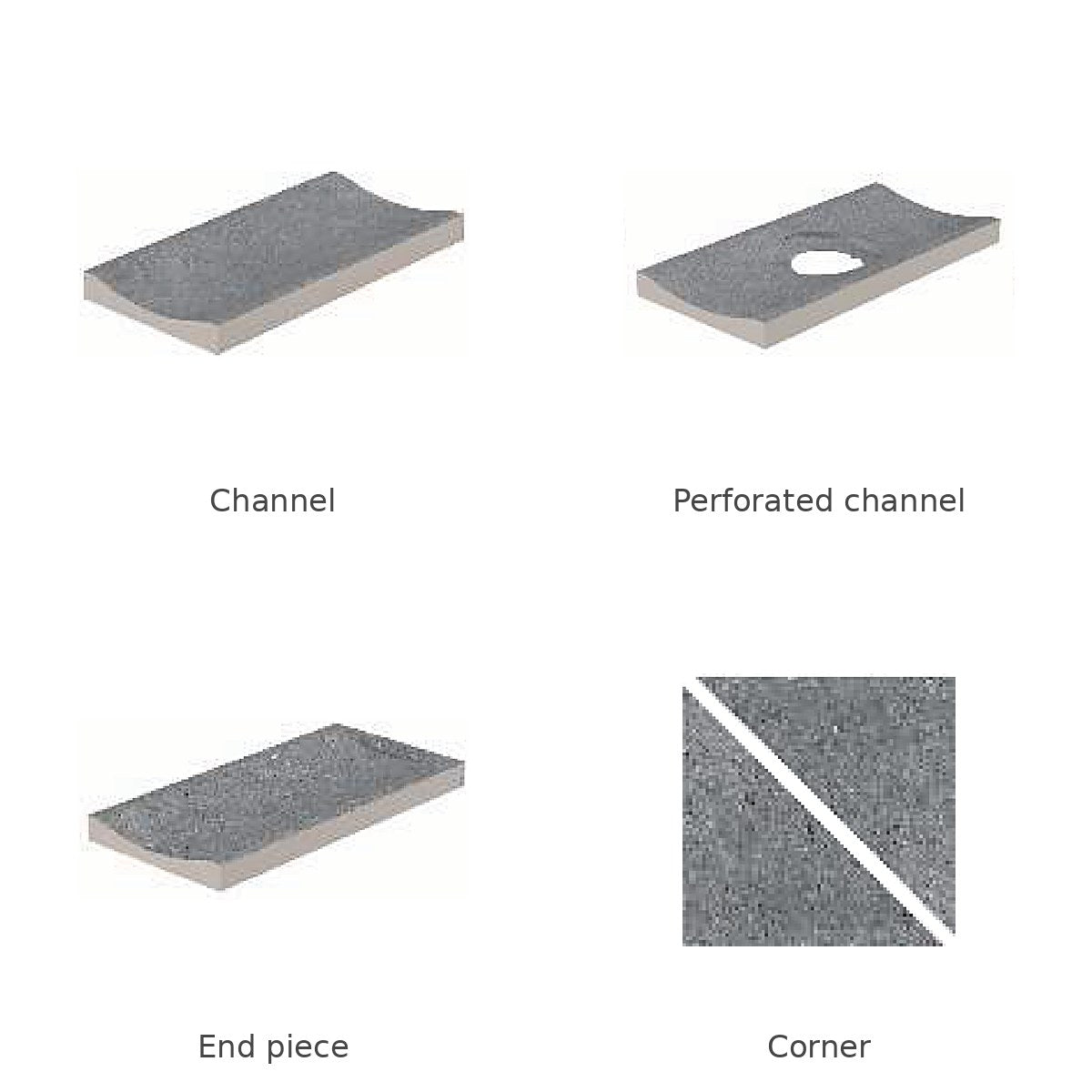

Pieces and sizes
| Piece | Nominal size | Actual size |
|---|---|---|
| Channel (RC) | 5x10 in. | 12 x 24.5 cm |
| Perforated channel, to drain outlet (RCP) | 5x10 in. | 12 x 24.5 cm |
| End piece (RCE) | 5x10 in. | 12 x 24.5 cm |
| Corner (RCC) | 5x5 in. | 12 x 12 cm |
Technical specifications
| Material | Porcelain |
|---|---|
| Water absorption | Eb ≤ 0.5% (EN ISO 10545-3) |
| Slip resistance | PTV ≥ 45, wet pendulum (EN 16165 Annex C) |
| Frost and thermal shock | Resistant (EN ISO 10545-12, EN ISO 10545-9) |
| Chemical resistance | Class A, including swimming pool salts (EN ISO 10545-13) |
| Use | Perimeter deck drainage at terrace edges, separate from the pool overflow |
| Sold by | Piece; made to order |
Installation notes
- Slope the deck toward the channel and the channel toward perforated pieces placed over drain outlets.
- Close open ends with end pieces and turn corners with corner pieces; set with the same exterior adhesive as the deck tile.
Matching Cement Grey pool-deck system
Every piece below is made in the same Cement Grey color, so coping, gutter grates, drains and deck tile finish as one surface:
- Cement Grey deck tile
- Cement Grey deck trims & edges
- Cement Grey slot overflow coping
- Cement Grey slot overflow edge tile
- Cement Grey one-piece pool coping
- Cement Grey bullnose pool coping
- Cement Grey flat pool coping
- Cement Grey flexible gutter grates
- Cement Grey drain grates
- Cement Grey concealed drain grates
Ordering and lead time
SeraPool Natural is made to order for each project and shipped direct from the factory to the job site, with crates marked for your project. Send drawings or pool and deck dimensions and we will list every coping, grate and drain piece on one quote; quantities, freight and lead time are confirmed per project.
