SeraPool Relax Anthracite Full-Body Porcelain Concealed Drain Grates & Corners
Sold by the Box
- Order samples: up to 4 pieces in any color for $49, shipped free.
- Order by the box: choose the size and the number of boxes. Freight is included, so every SeraPool order ships free.
- Your boxes are packed at the SeraPool factory and flown to you or your job site: 7 business days handling + 7–10 business days transit.
Delivery: Ships in 2-3 business days.
Insured Shipping: Insured, trackable shipping via UPS.
Samples available: Samples ship free.
Trade & Project support available: Contact us for project pricing, bulk orders, and quantity assistance.
Need help?: Call or text 657-296-7676
SeraPool Relax Anthracite Full-Body Porcelain Concealed Drain Grates & Corners are concealed (hidden) gutter grates: the drainage slots sit in the side gaps, so each grate reads as a solid porcelain band and the overflow gutter disappears into the deck. They are part of the SeraPool Relax™ Outdoor & Pool Collection, where the pool interior, coping, overflow pieces and drain grates are specified as one porcelain system.
Anthracite is a deep charcoal anthracite, full-body porcelain: the color and texture run through the whole body, so bullnose edges, cut edges and worn areas keep the same appearance as the surface. Its non-porous surface does not absorb water, resists stains and is easy to clean, and the full-body porcelain holds its color in sun, frost and pool chemistry.
Pieces and sizes
| Piece | Nominal size | Size (cm) |
|---|---|---|

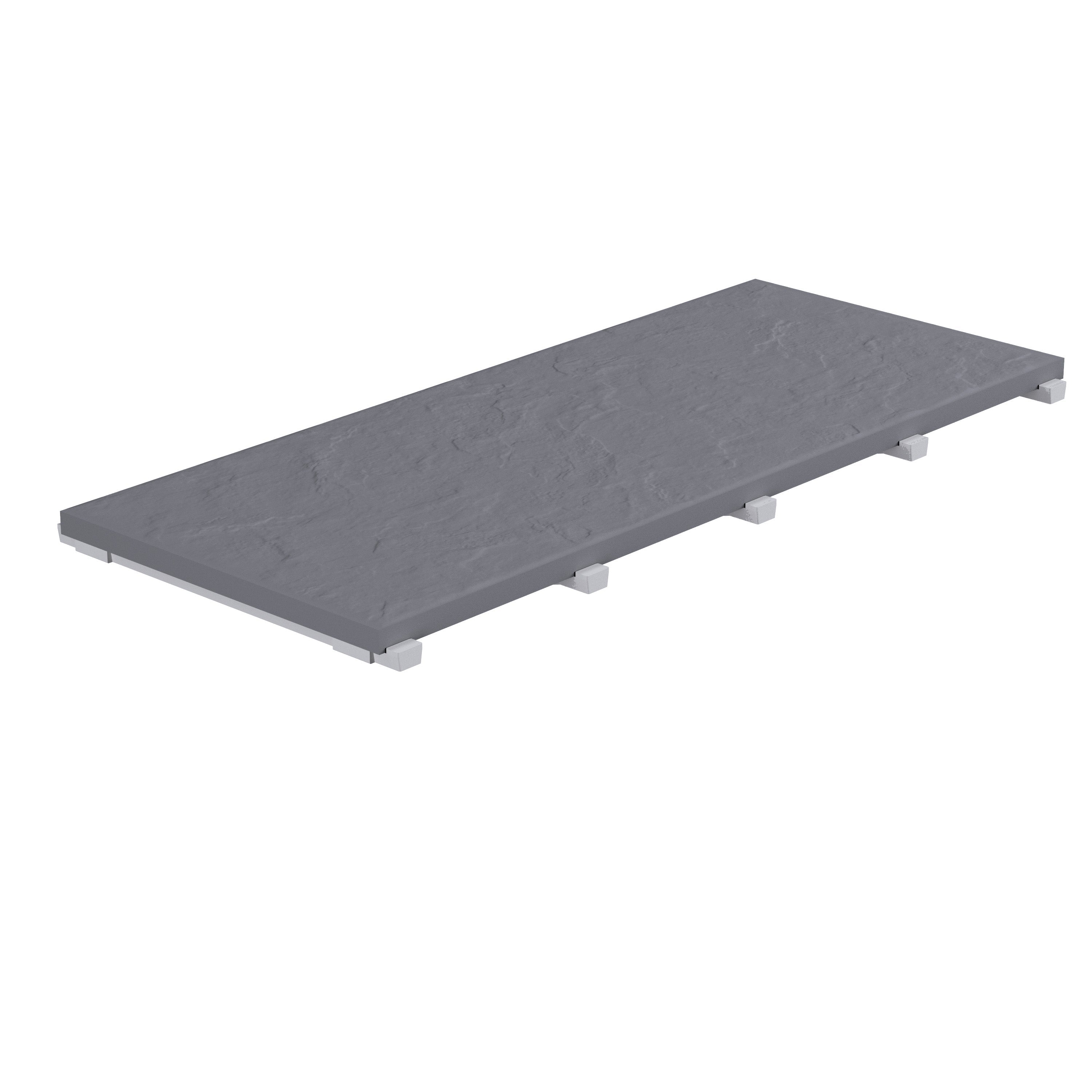

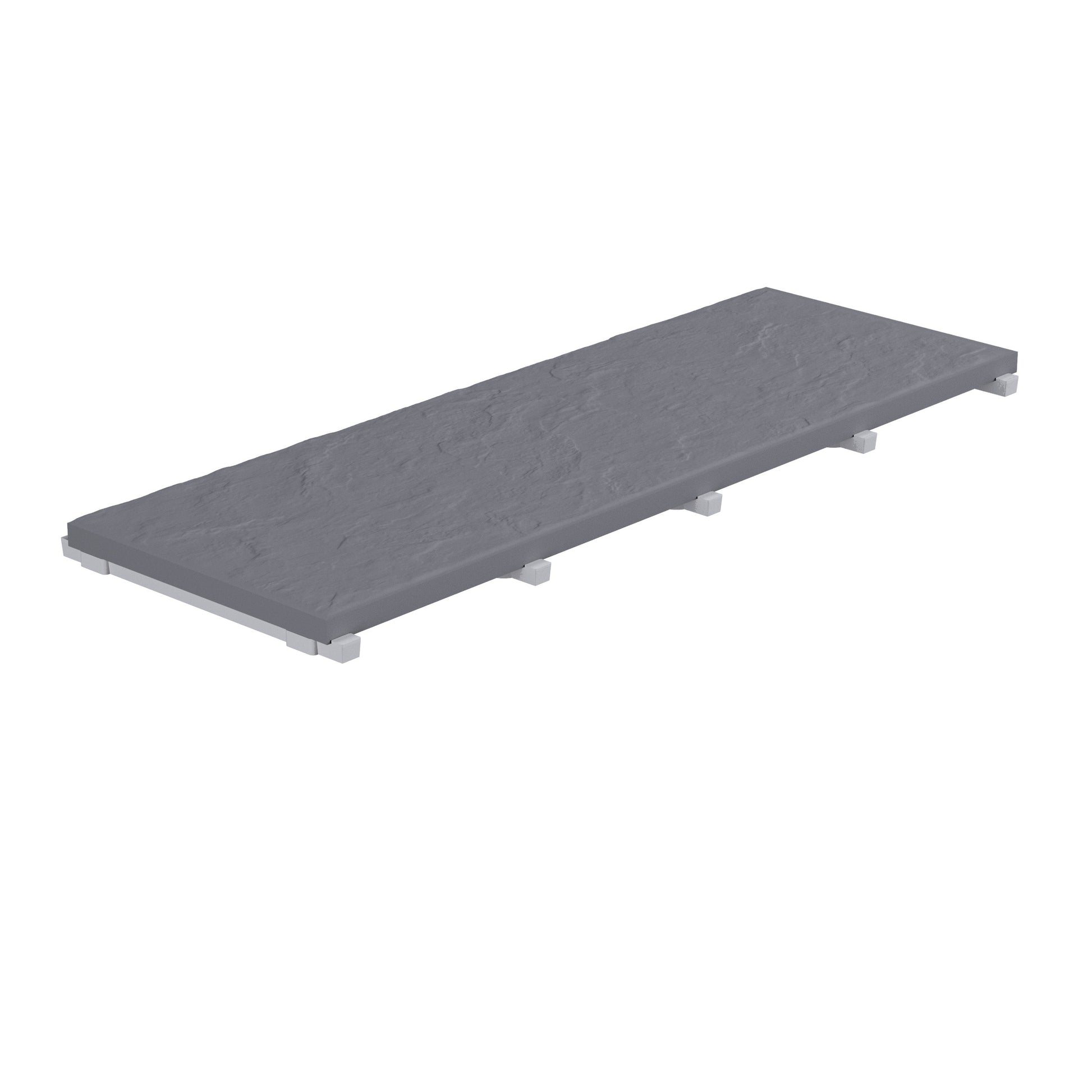

| Grate | 10x26 in. / 12x26 in. | 25 x 65 cm / 30 x 65 cm |

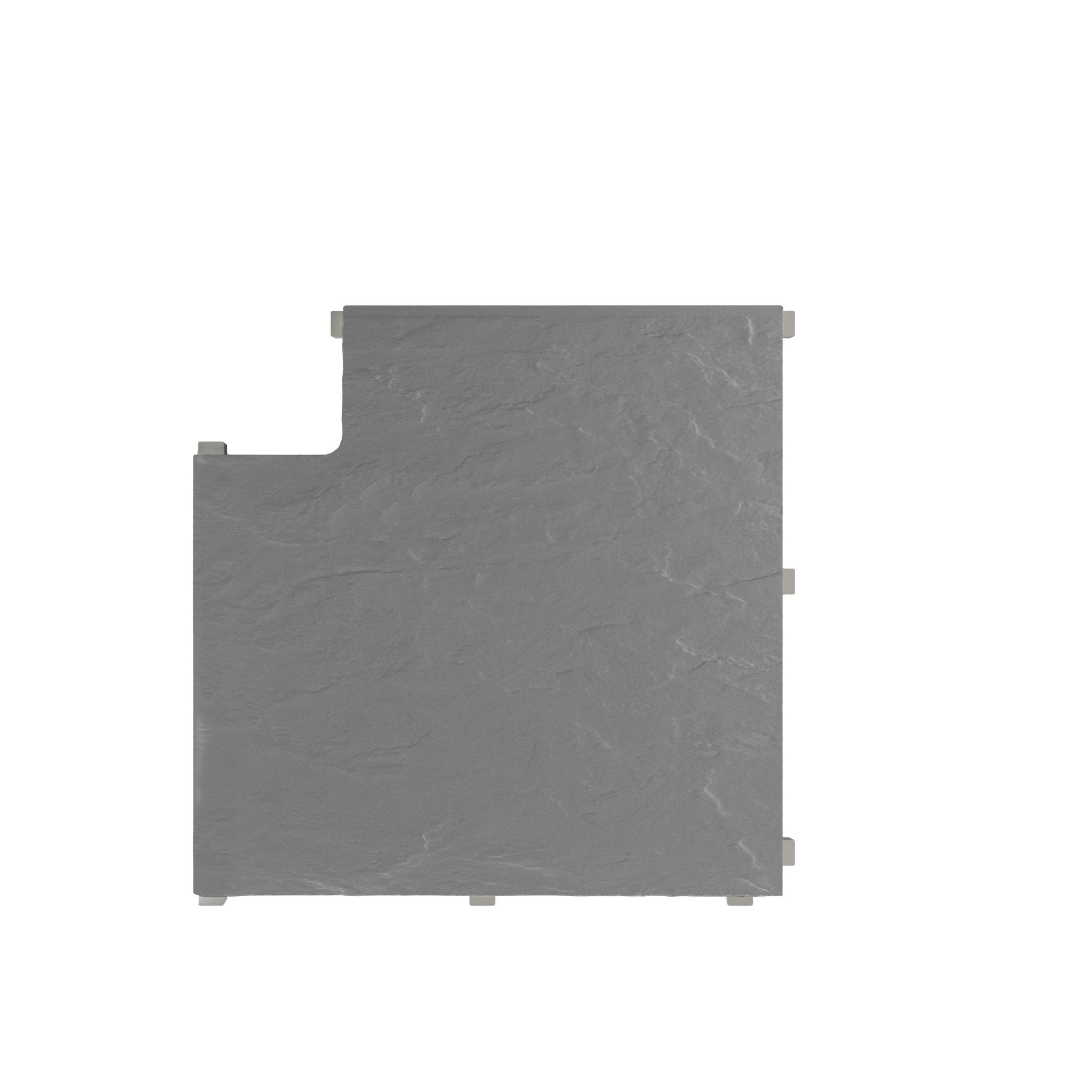

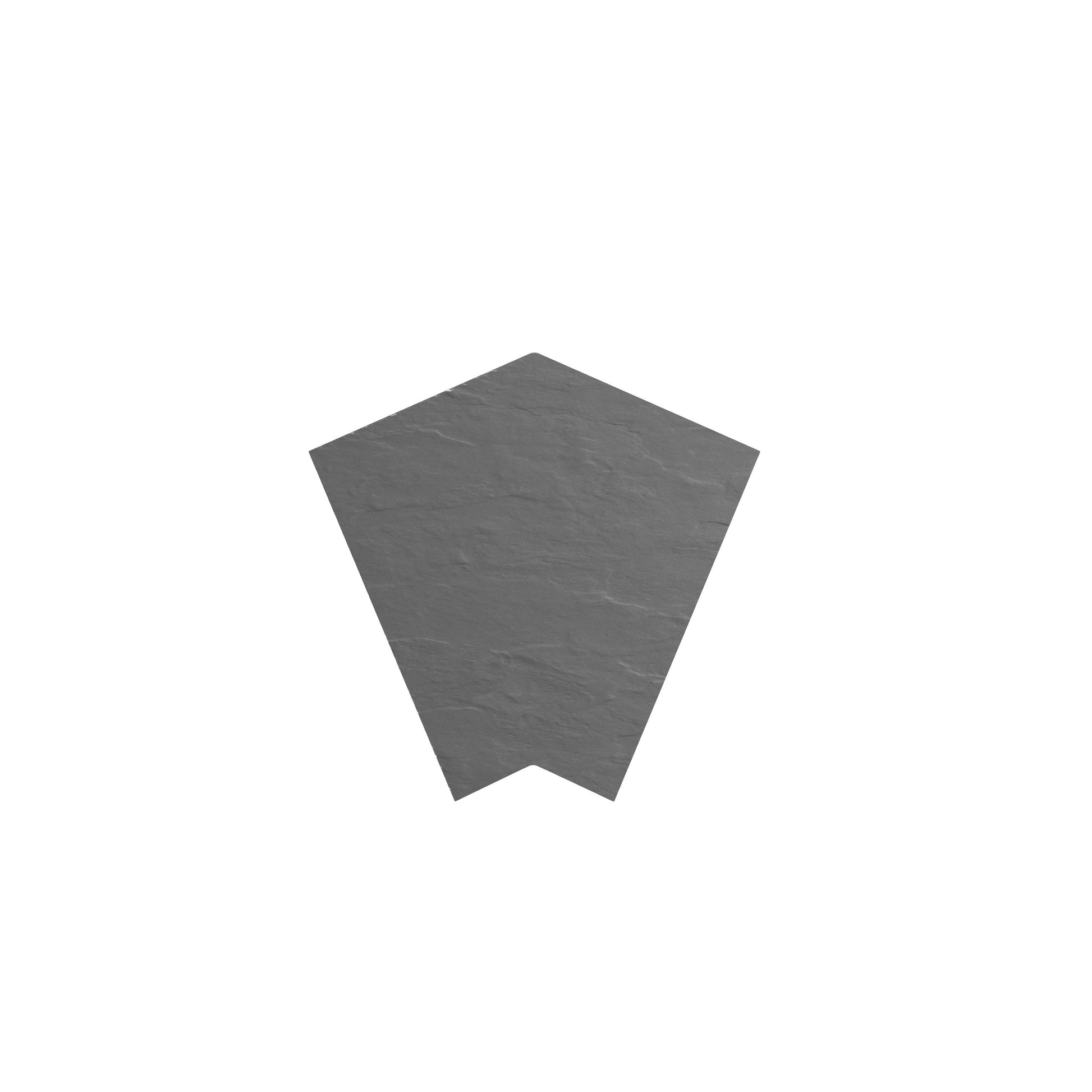

| Corner, 90° or 45° | 10x10 in. / 12x12 in. | 25 x 25 cm / 30 x 30 cm |
Technical specifications
| Material | Full-body porcelain |
|---|---|
| Water absorption | Eb ≤ 0.5%, individual max. 0.6% (EN ISO 10545-3) |
| Slip resistance | PTV ≥ 45, wet pendulum (EN 16165 Annex C) |
| Frost and thermal shock | Resistant (EN ISO 10545-12, EN ISO 10545-9) |
| Chemical resistance | Class A, including swimming pool salts and household cleaners (EN ISO 10545-13) |
| Sold by | Piece; custom order |
Installation notes
- Order the grate width (10 in. or 12 in.) to match the finished gutter opening; grates rest on the gutter ledges and lift out for cleaning.
- Use 90° corners at square pool corners and 45° corners where the gutter turns at an angle, in the same width as the straight grates.
Matching Anthracite full-body system
Every piece below is made in the same Anthracite full-body porcelain, so coping, overflow edges and drain grates finish as one perimeter:
- Anthracite pool coping
- Anthracite slot overflow coping
- Anthracite slot overflow edge tile
- Anthracite drain grates & corners
Ordering and lead time
SeraPool Relax is a custom-order product stocked at the factory overseas, not in a US warehouse. Send us your pool project design; your selected materials are put together at the factory for your project and shipped directly to the US job site, with crates marked for your project. For full-size swimming pool, spa and surrounding landscape projects only, through trade professionals.
