SeraPool Natural Pool Garden Grey Porcelain Deck Drain Channel System
Sold by the Piece
Custom order: produced for your project and shipped direct from the factory. Lead time is confirmed with your quote.
SeraPool Natural Pool Garden Grey Porcelain Deck Drain Channel System is a shallow porcelain channel that collects rainwater and deck runoff at the edge of the terrace and carries it away from the pool, so dirty water never mixes with pool water. It is part of the SeraPool Natural™ Outdoor & Pool Collection, where the pool interior, coping, grates and deck are specified as one porcelain system.
Pool Garden Grey is a mid-gray, natural-stone-look porcelain surface with a subtle green-gray cast. Pool coping, grates and deck tile are produced separately, so slight tonal differences between them are normal for this natural-stone look; blend pieces from several crates during installation.

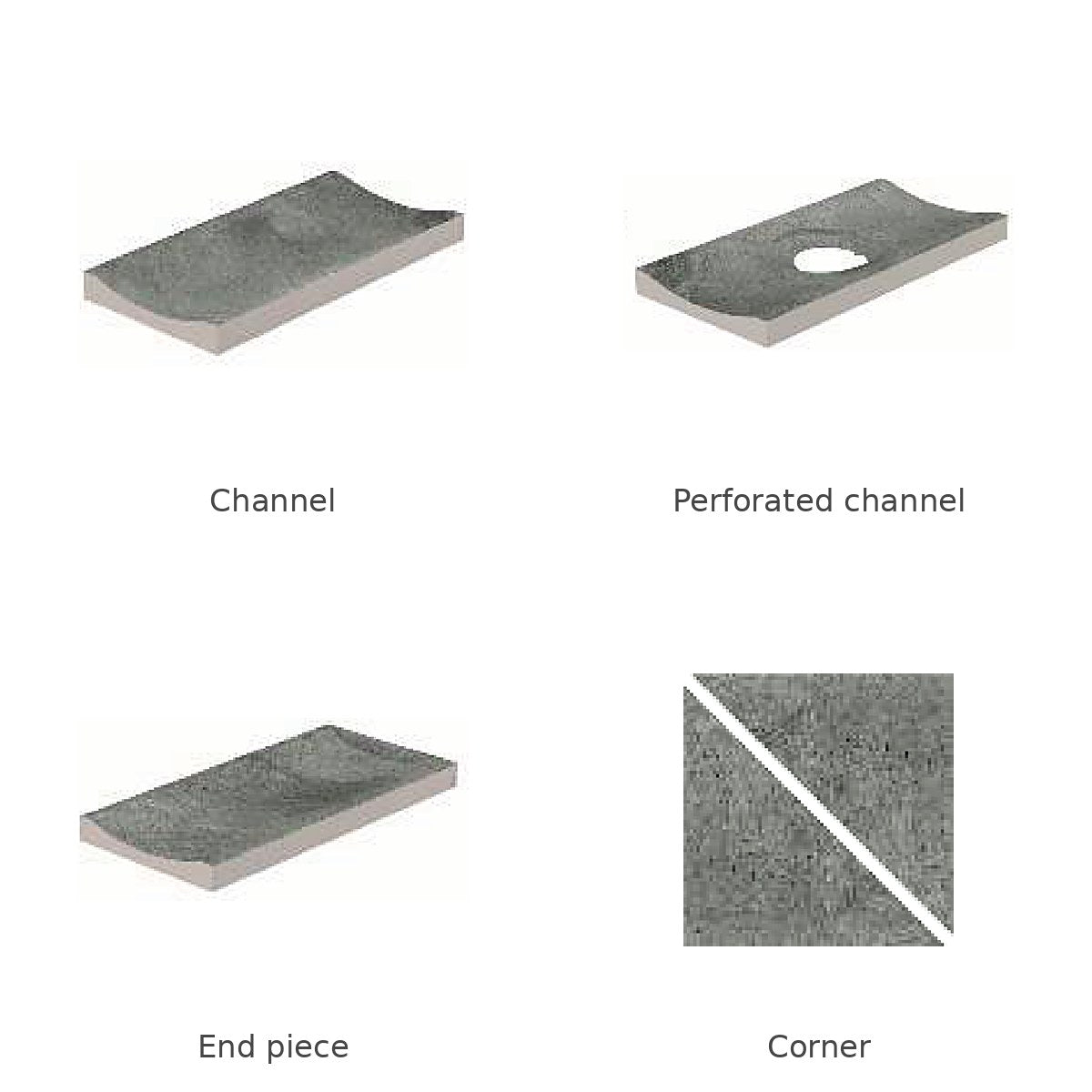

Pieces and sizes
| Piece | Nominal size | Actual size |
|---|---|---|
| Channel (RC) | 5x10 in. | 12 x 24.5 cm |
| Perforated channel, to drain outlet (RCP) | 5x10 in. | 12 x 24.5 cm |
| End piece (RCE) | 5x10 in. | 12 x 24.5 cm |
| Corner (RCC) | 5x5 in. | 12 x 12 cm |
Technical specifications
| Material | Porcelain |
|---|---|
| Water absorption | Eb ≤ 0.5% (EN ISO 10545-3) |
| Slip resistance | PTV ≥ 45, wet pendulum (EN 16165 Annex C) |
| Frost and thermal shock | Resistant (EN ISO 10545-12, EN ISO 10545-9) |
| Chemical resistance | Class A, including swimming pool salts (EN ISO 10545-13) |
| Use | Perimeter deck drainage at terrace edges, separate from the pool overflow |
| Sold by | Piece; made to order |
Installation notes
- Slope the deck toward the channel and the channel toward perforated pieces placed over drain outlets.
- Close open ends with end pieces and turn corners with corner pieces; set with the same exterior adhesive as the deck tile.
Matching Pool Garden Grey pool-deck system
Every piece below is made in the same Pool Garden Grey color, so coping, gutter grates, drains and deck tile finish as one surface:
- Pool Garden Grey deck tile
- Pool Garden Grey deck trims & edges
- Pool Garden Grey slot overflow coping
- Pool Garden Grey slot overflow edge tile
- Pool Garden Grey one-piece pool coping
- Pool Garden Grey bullnose pool coping
- Pool Garden Grey flat pool coping
- Pool Garden Grey flexible gutter grates
- Pool Garden Grey drain grates
- Pool Garden Grey concealed drain grates
Ordering and lead time
SeraPool Natural is made to order for each project and shipped direct from the factory to the job site, with crates marked for your project. Send drawings or pool and deck dimensions and we will list every coping, grate and drain piece on one quote; quantities, freight and lead time are confirmed per project.
