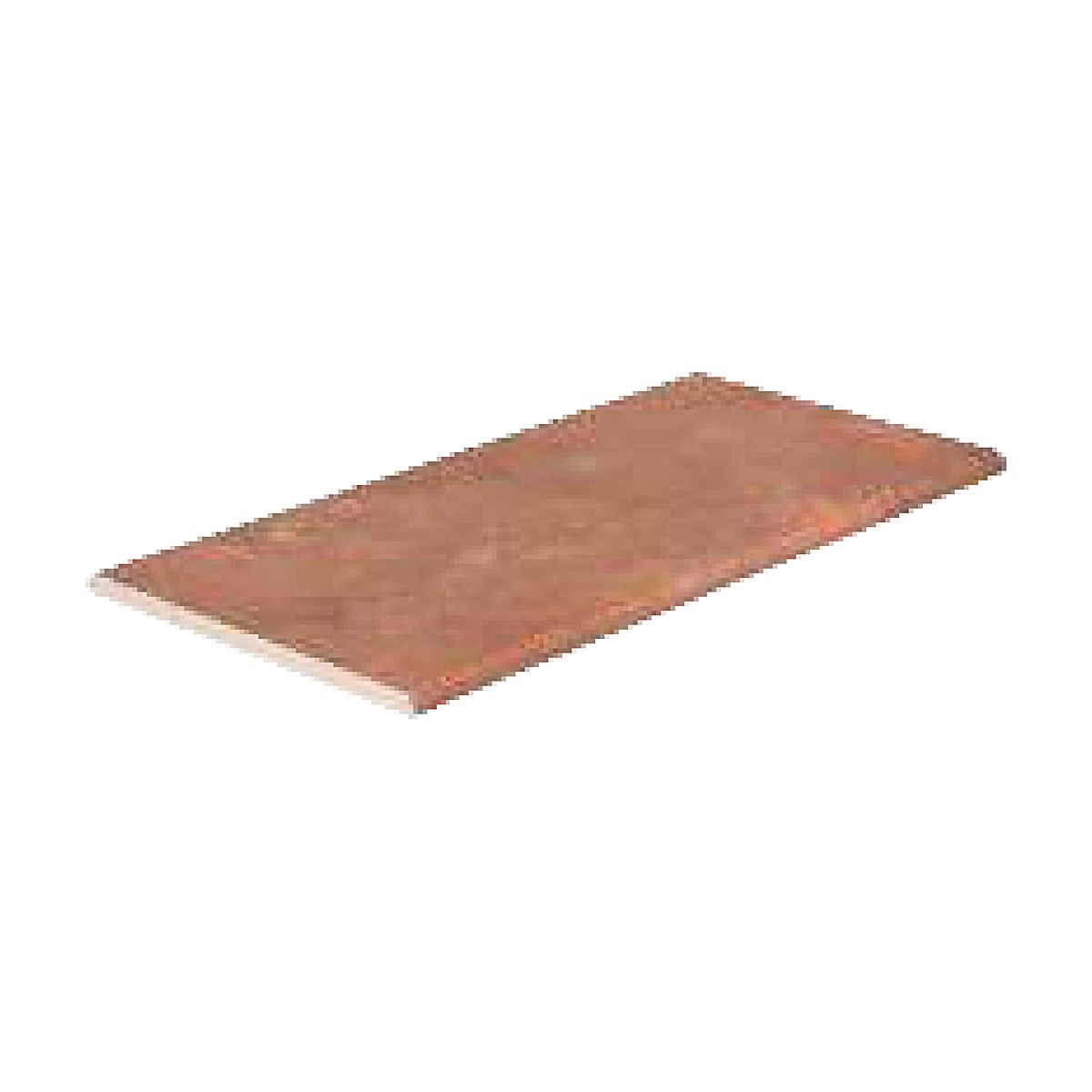

SeraPool Natural Cotto Porcelain Slot Overflow Coping
Sold by the Piece
Custom order: produced for your project and shipped direct from the factory. Lead time is confirmed with your quote.

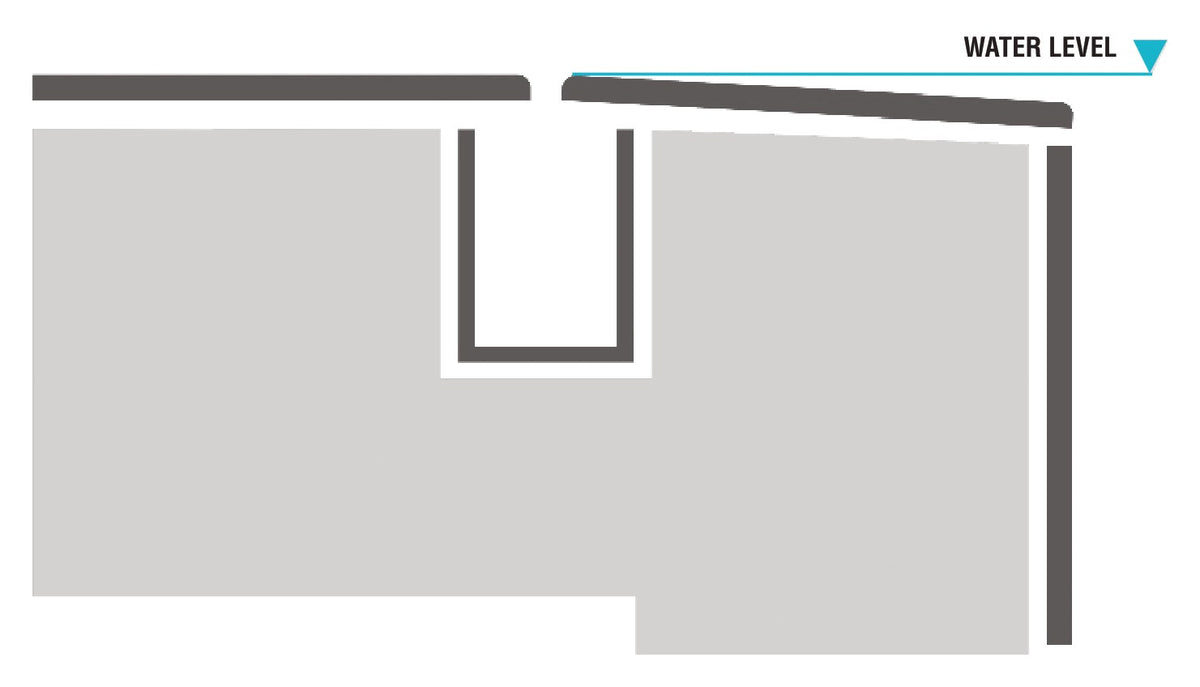

SeraPool Natural Cotto Porcelain Slot Overflow Coping is the deck-level coping for slot overflow (deck-level / rim-flow) pools: pool water flows over its sloped face into the slot behind it, while the top stays flush with the deck. It is part of the SeraPool Natural™ Outdoor & Pool Collection, where the pool interior, coping, grates and deck are specified as one porcelain system.
Cotto is a terracotta-red porcelain surface inspired by traditional cotto. Pool coping, grates and deck tile are produced separately, so slight tonal differences between them are normal for this natural look; blend pieces from several crates during installation.
Technical specifications
| Material | Porcelain |
|---|---|
| Size | 13x26 in. nominal; actual 32.7 x 65.7 cm (12-7/8 x 25-7/8 in.) |
| Thickness | 11/16 in. (17 mm) |
| Top slope | 5% toward the overflow slot |
| Recommended joint | 1/8 in. (3 mm) |
| Back | Epoxy-mesh reinforced; does not fall apart if broken |
| Water absorption | Eb ≤ 0.5% (EN ISO 10545-3) |
| Slip resistance | PTV ≥ 45, wet pendulum (EN 16165 Annex C) |
| Frost and thermal shock | Resistant (EN ISO 10545-12, EN ISO 10545-9) |
| Chemical resistance | Class A, including swimming pool salts (EN ISO 10545-13) |
| Pairs with | Cotto slot overflow edge tile |
| Sold by | Piece; made to order |
Installation notes
- Set on a sound, level bond beam with a C2TE S1 deformable cementitious adhesive (EN 12004) or an ANSI A118.15 improved modified mortar, fully back-buttered with no voids.
- Check the 5% slope and the slot width against the overflow detail on the drawings before setting; coping and edge tile set the final water level.
- Use 1/8 in. (3 mm) joints and a flexible, pool-rated grout. Leave a flexible, sealant-filled movement joint between coping and deck tile and over structural joints (TCNA EJ171).
Matching Cotto pool-deck system
Every piece below is made in the same Cotto color, so coping, gutter grates, drains and deck tile finish as one surface:
- Cotto deck tile
- Cotto deck trims & edges
- Cotto slot overflow edge tile
- Cotto one-piece pool coping
- Cotto bullnose pool coping
- Cotto flat pool coping
- Cotto flexible gutter grates
- Cotto drain grates
- Cotto concealed drain grates
- Cotto deck drain channel
Ordering and lead time
SeraPool Natural is made to order for each project and shipped direct from the factory to the job site, with crates marked for your project. Send drawings or pool and deck dimensions and we will list every coping, grate and drain piece on one quote; quantities, freight and lead time are confirmed per project.
